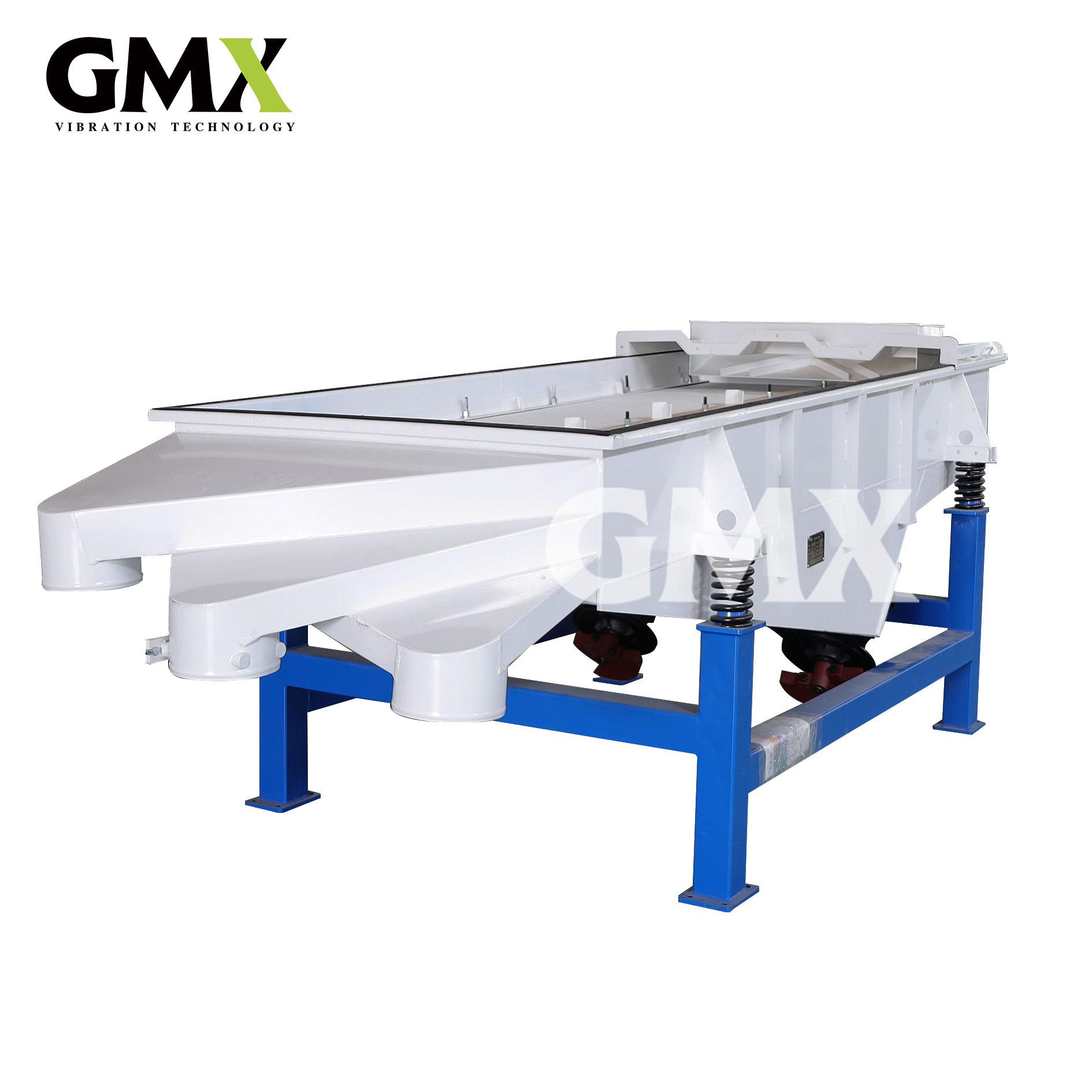

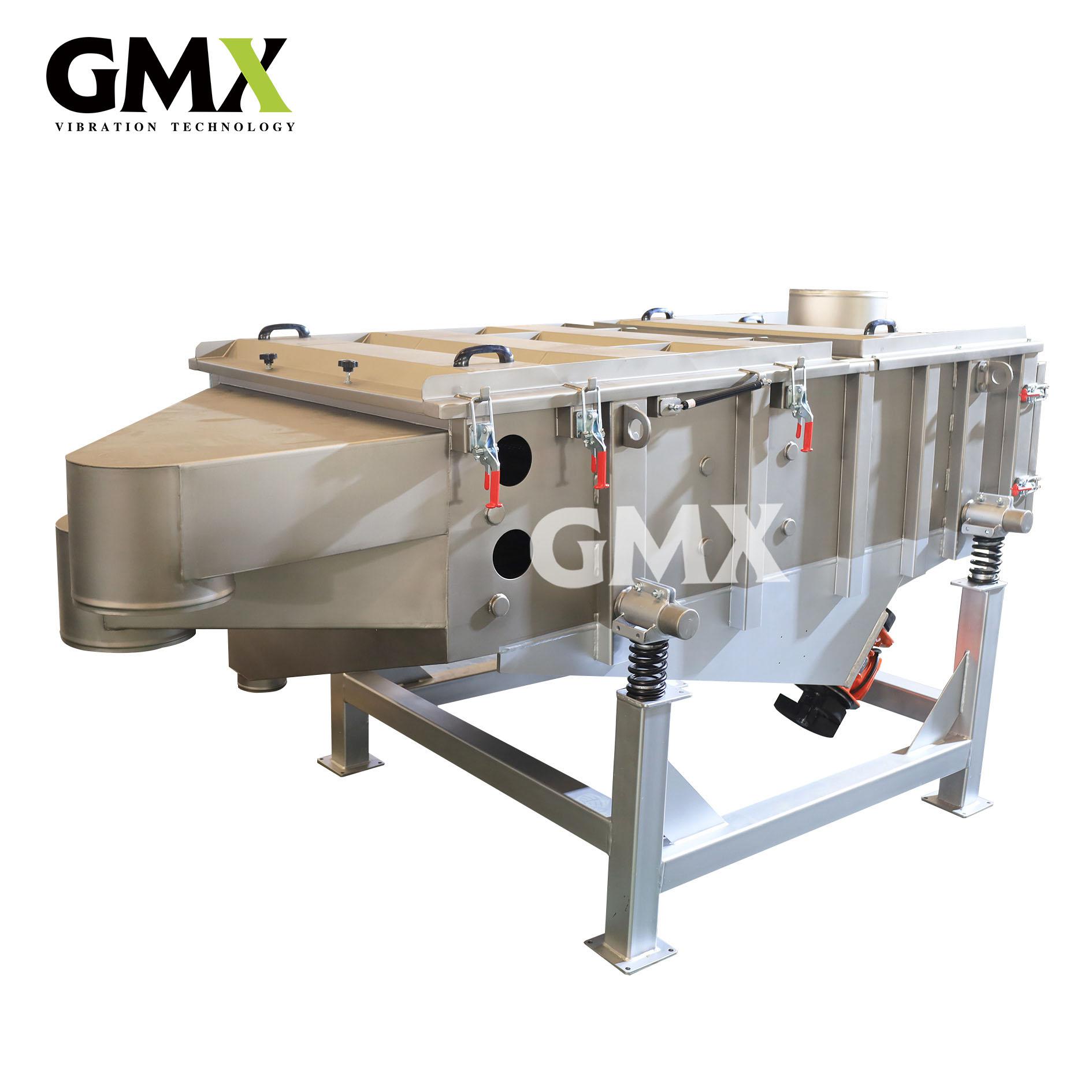

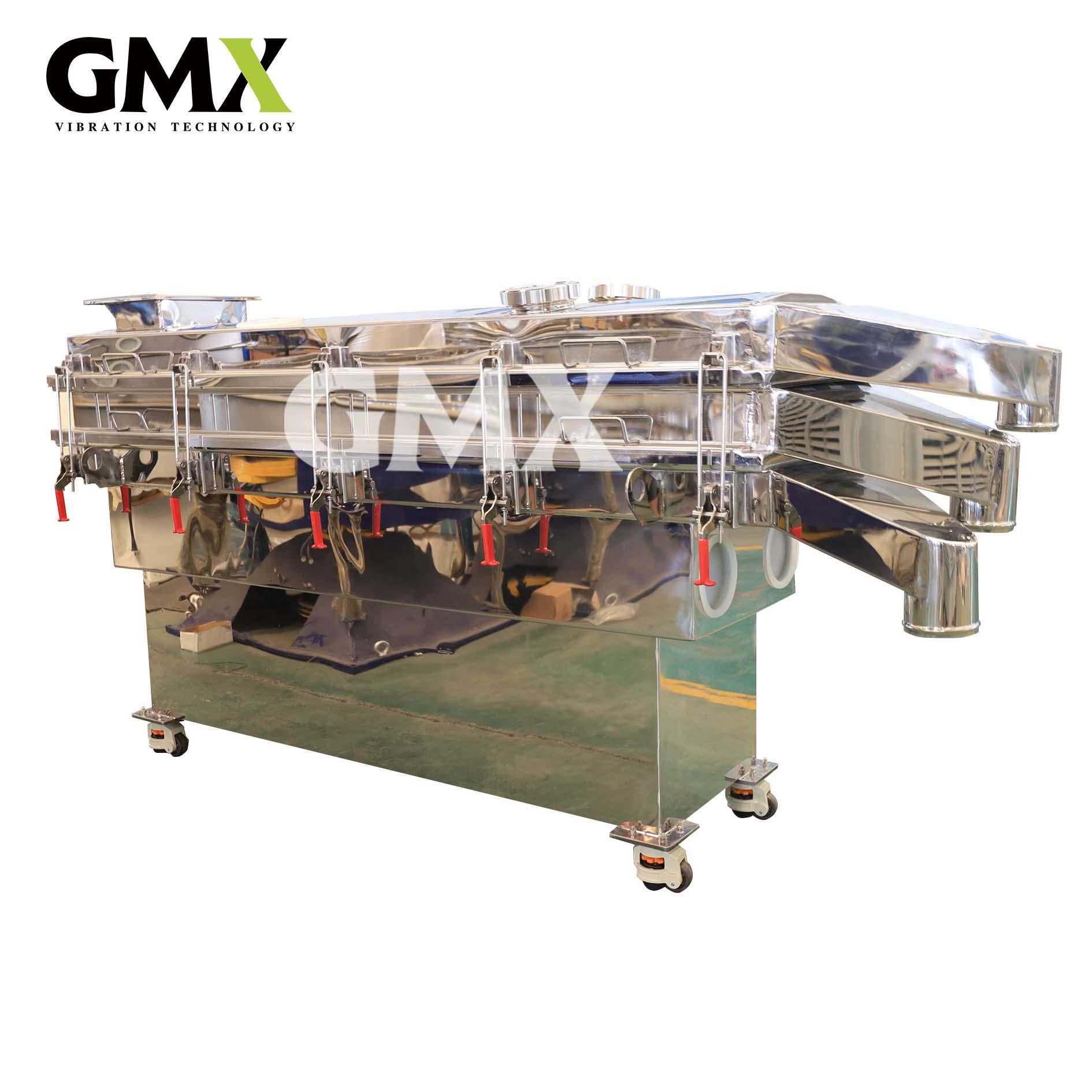

Linear Vibrating Screen

Linear Vibrating Screener

LVS Series

Main Specifications

Mesh opening	2-200 mesh
Max capacity	20 t/h
No. decks	1-5
Screen slope	0-7°
Operating speed	1000 / 1200 rpm (at 50Hz / 60Hz)
Amplitude	2-8 mm
Materials	AISI 304, AISI 316L, carbon steel painted
Surface Options	Powder coating; Polishing; Bead blasting
Anti-blinding devices	Bouncing balls

Brochure Get Quotation

Products

Vibrating Screener

Gyratory Screen Tumbler Screening Machine Circular Vibrating Screen Low-profile Separator Linear Vibrating Screen Probability Screen

Vibrating Conveyor & Feeder

Vibrating Conveyor Tubular Feeder Spiral Elevator

Vibrator Motor

Foot Mounted Vibrator Motor Flanged Vibrator Motor

Contact Now

Name:

Email: Email is wrong!

Message: Message is wrong!

SUBMIT

Overview

Reviews

Descriptions

The LVS series is designed for high-capacity classification, scalping, and de-dusting of fine to medium-sized bulk solids. With its dual functionality of screening and conveying, this durable machine is widely applicable across various industries. This series supports extensive customization options.

Features & Advantages

High capacity and accurate screening
Light and durable structure
Feed distributor
Quick access door
Quick screen mesh replacement
Adjustable flow rate
Dust-proof
Anti-blinding bouncing ball system
Stable performance with low noise level
Low maintenance cost

Highly Customizable

Dimension	Length, width, height
No. decks	1-5
Machine material	AISI 304, AISI 316L, carbon steel painted
Mesh material	Woven wire, perforated sheet metal, grizzly bar, polyurethane
Deck angle	0-7 degree uphill or downhill
Spring	Steel compression spring, rubber spring, oscillating mountings
Inlet and outlet	Round, square, oval, flange

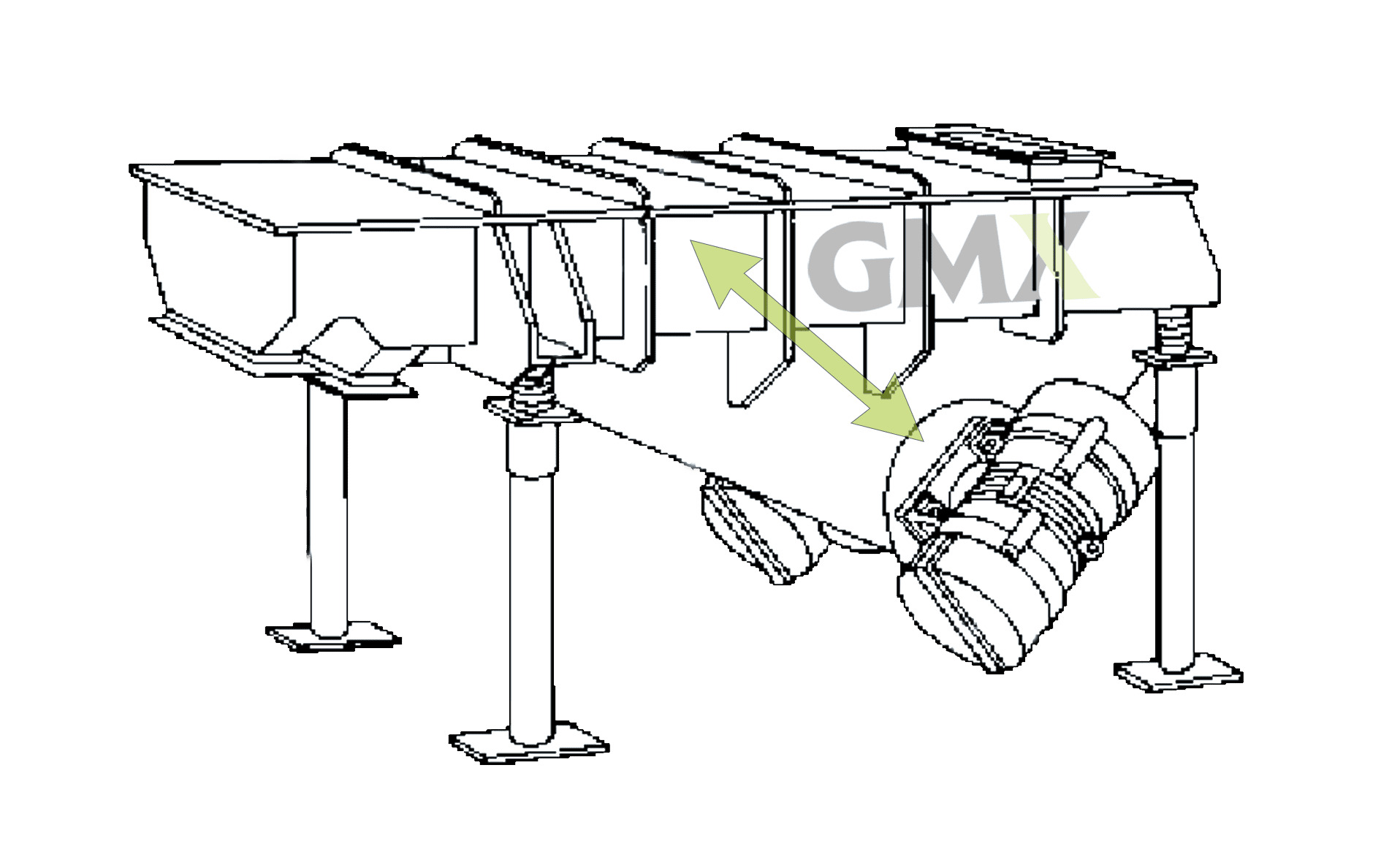

Motion Technology

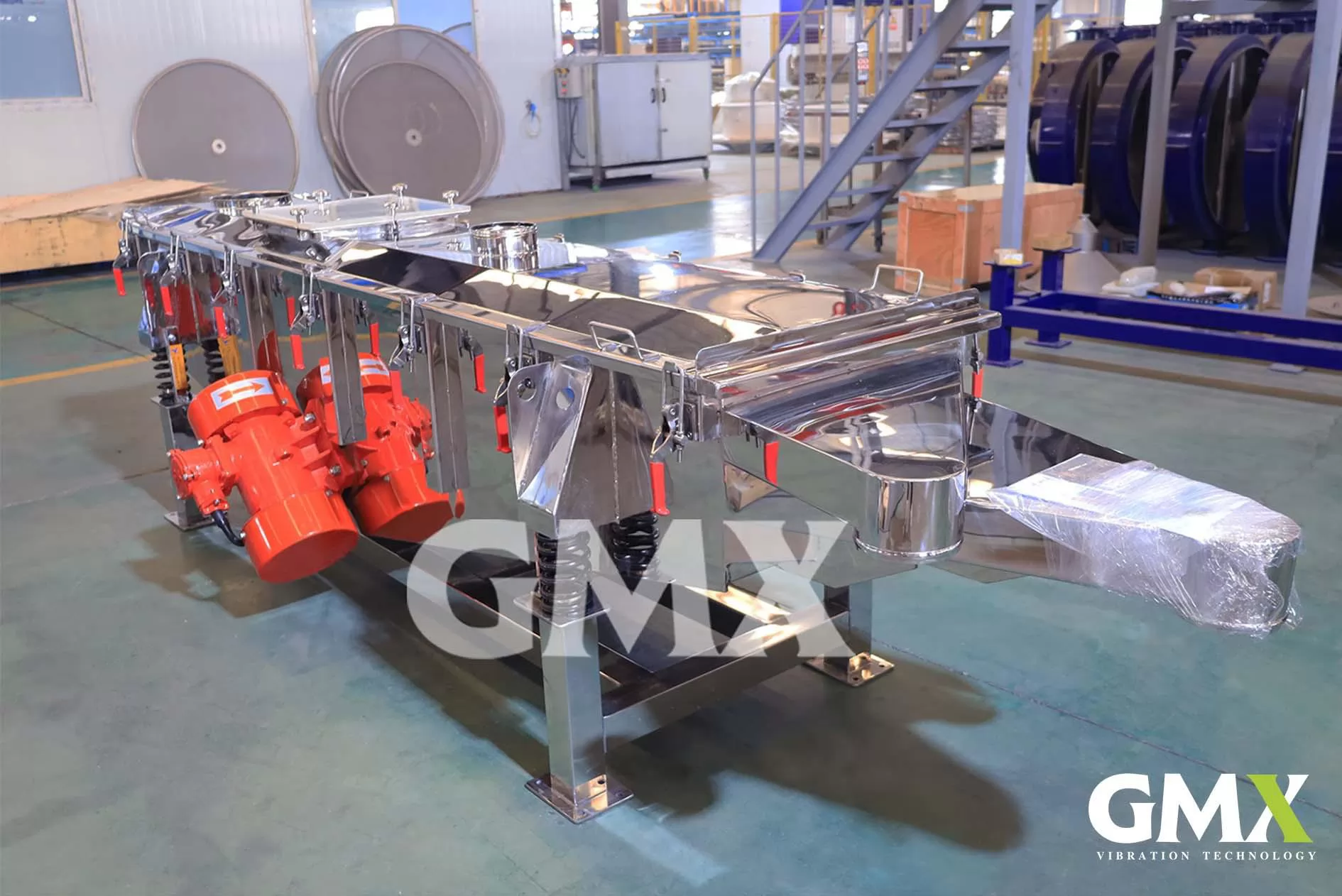

The LVS series features two powerful vibrator motors mounted on a rigid common base. When the two motors operate at the same frequency and in opposite directions, they automatically synchronize to generate a linear motion. This motion enables the LVS series to efficiently grade and convey bulk solids as needed.

The inclined deck angle improves screening precision, while the high G-force and bouncing ball system effectively reduce clogging.

Specifications

Datasheet

Mesh opening	2-200 mesh
Max capacity	20 t/h
No. of decks	1-5
Screen Slope	0-7°
Screen Slope	0-7°
Operating speed	1000 / 1200 rpm (at 50Hz / 60Hz)
Amplitude	2-8 mm
Materials	AISI 304, AISI 316L, carbon steel painted
Surface Options	Powder coating; Polishing; Bead blasting
Anti-blind devices	Bouncing balls

Types

Types		LVS 0520	LVS 0820	LVS 1020	LVS 1030	LVS 1230	LVS 1540
Mesh surface	mm	500×2,000	800×2,000	1,000×2,000	1,000×3,000	1,200×3,000	1,500×4,000
Engine performance	kW	2×0.4-0.75	2×0.75-1.1	2×0.75-1.1	2×1.1-1.5	2×1.5-3.0	2×2.2-3.7
Weight	kg	400-550	600-800	700-950	800-1,100	1,000-1,300	2,200-2,500
