- Smooth conveyance of sticky materials using forced vibration.
- Adjustable flow rate by modifying the weight angle of vibrator motors.
- Fully enclosed design to prevent material spillage and contamination.
- Low noise level with efficient and gentle operation.
- Designed for continuous operation.
- Low maintenance cost, with no lubrication or regular inspections required.

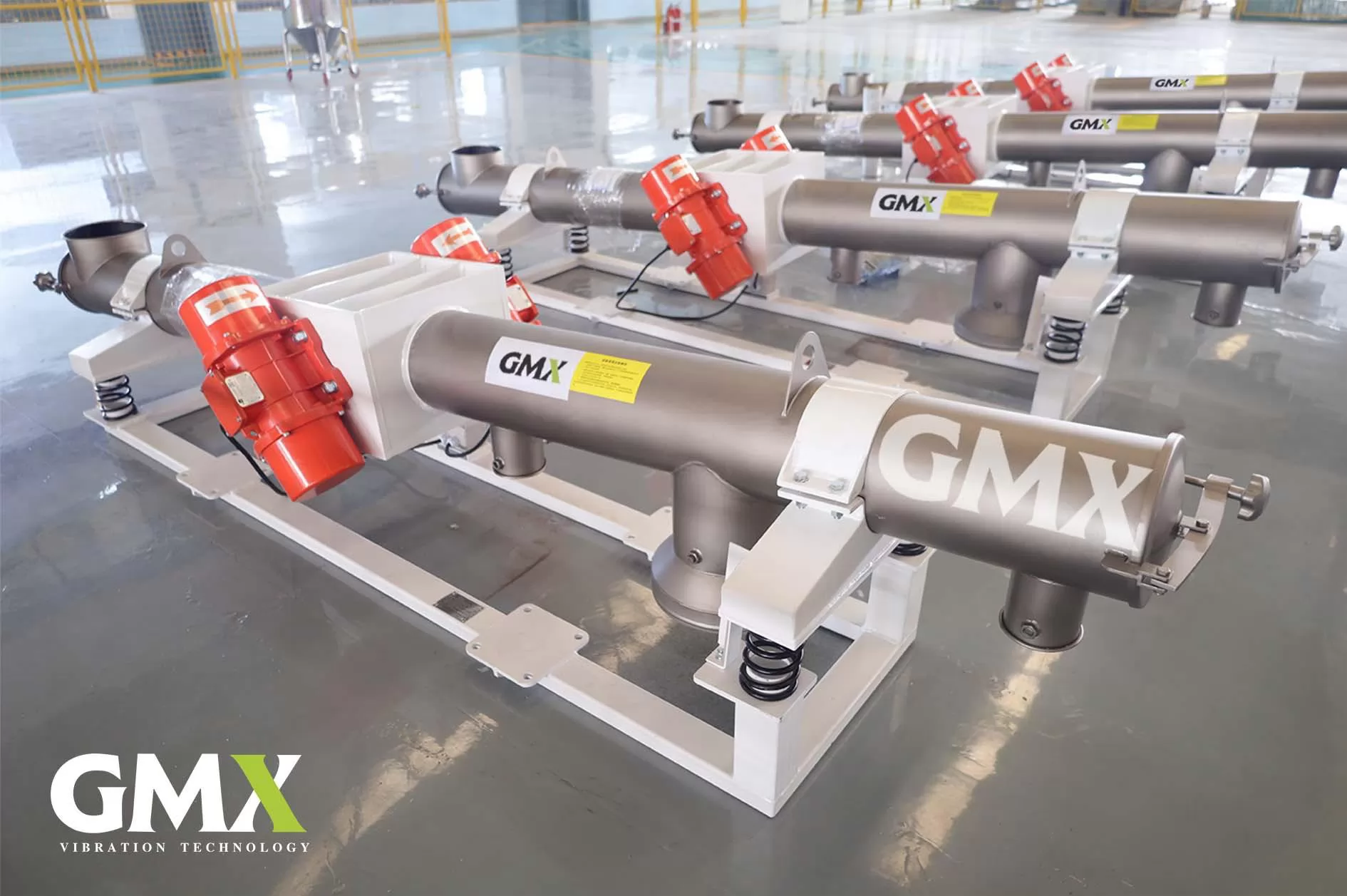

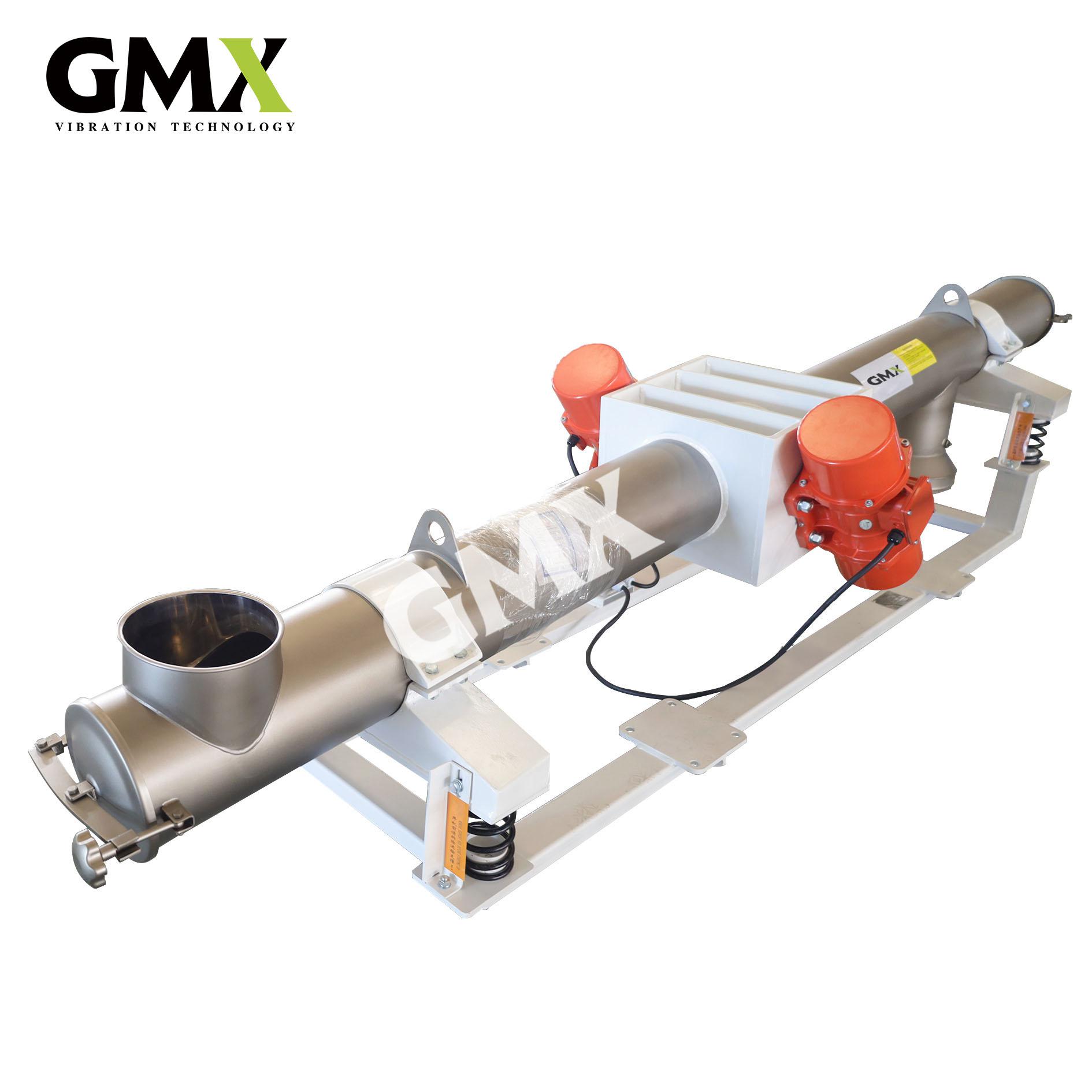

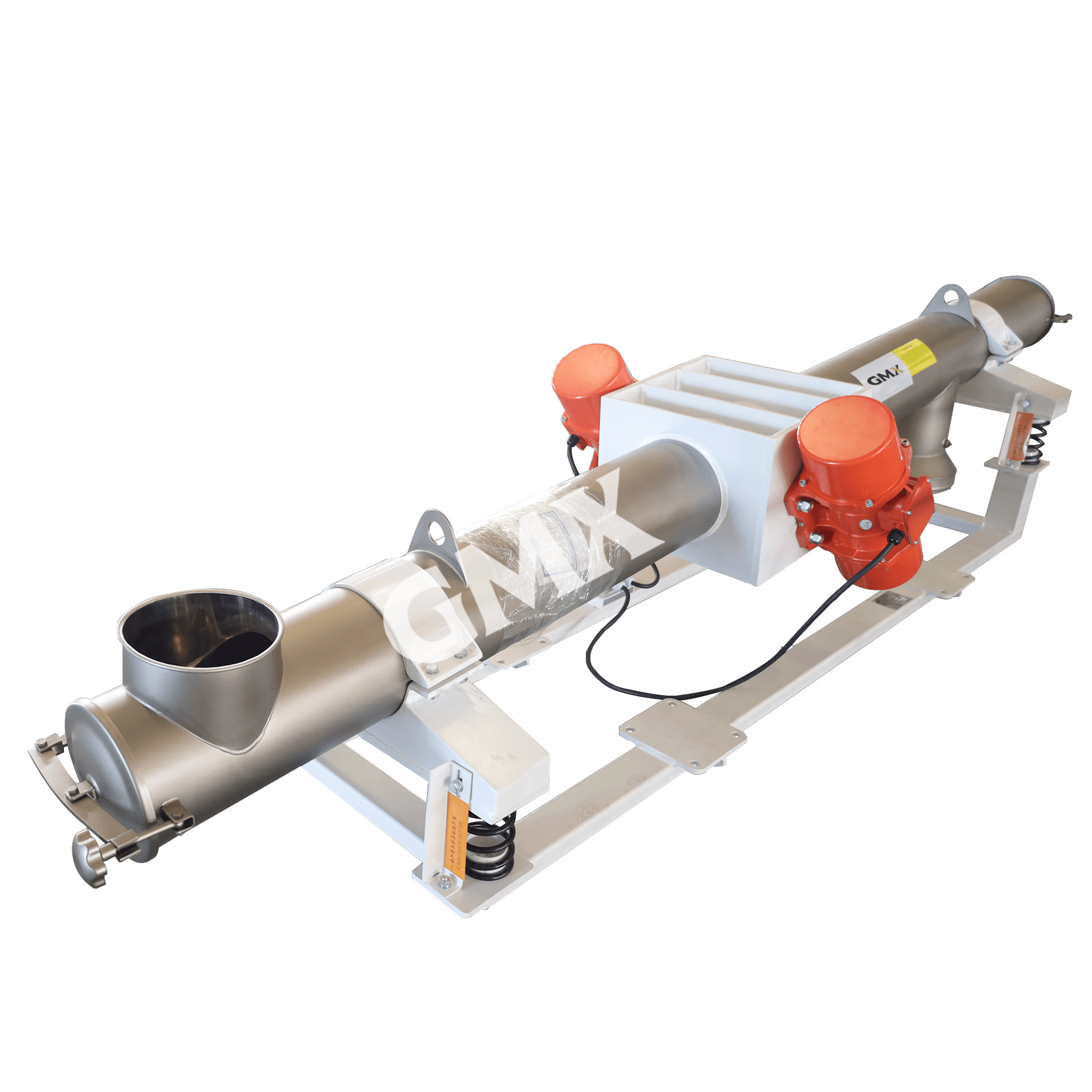

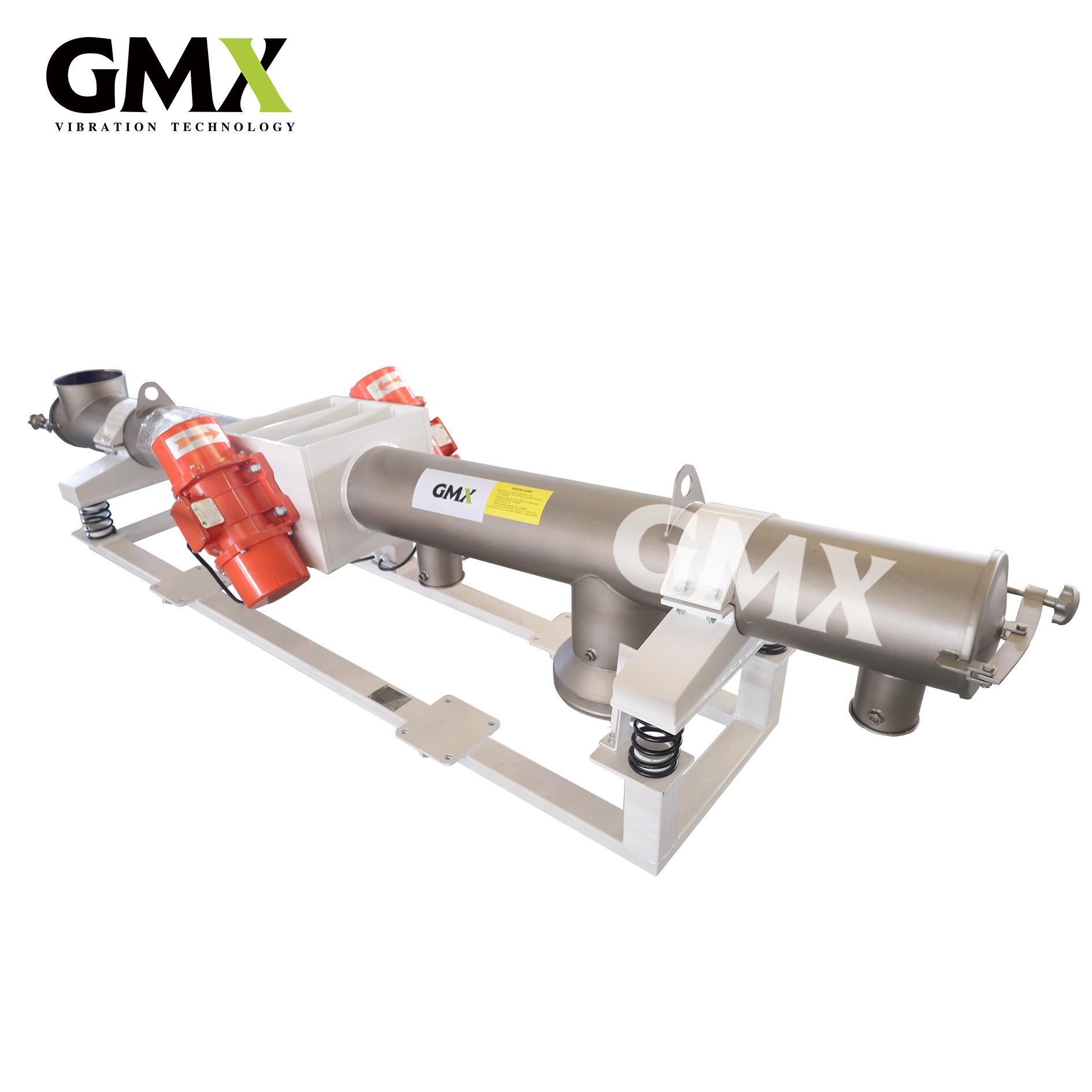

Tubular Feeder
Vibratory Tube Feeder
TF Series
Main Specifications
| Capacity | 0-120 t/h |
| Screen Slope | 0-8° |
| Operating speed | 1000 / 1200 rpm (at 50Hz / 60Hz) |
| Materials | 304/316L Stainless steel; Carbon steel |
| Surface options | Powder coating; Polishing; Bead blasting |
Products
Contact Now
Overview
Reviews
Descriptions
The TF Series is an ideal solution for conveying materials that require airtight conveyance or are prone to generating dust. The linear vibration applied to the enclosed tube ensures consistent and even product flow, while the simple yet robust design offers low maintenance and reliable performance.
Features & Advantages
Motion Technology
The TF Series features two powerful vibrator motors mounted on the side panels. When these motors operate at the same frequency and in opposite directions, they synchronize automatically to produce a forced linear vibration. This vibration enables the TF series to efficiently convey bulk solids from the inlet to the outlets as needed.
Specifications
Datasheet
| Capacity | 0-120 t/h |
| Screen Slope | 0-8° |
| Operating speed | 1000 / 1200 rpm (at 50Hz / 60Hz) |
| Materials | 304/316L Stainless steel; Carbon steel |
| Surface Options |
Polishing; Bead blasting; Powder coating |
Types
| Types | TF 160 | TF 219 | TF 325 | TF 377 | TF 426 | |
|---|---|---|---|---|---|---|
| Diameter Φ | mm | 160 | 219 | 325 | 377 | 426 |
| Length | mm | 4,000 | 6,000 | 6,000 | 6,000 | 6,000 |
| Engine performance | kW | 2×0.25-0.55 | 2×0.37-1.1 | 2×0.55-1.5 | 2×0.55-1.5 | 2×0.55-2.2 |
